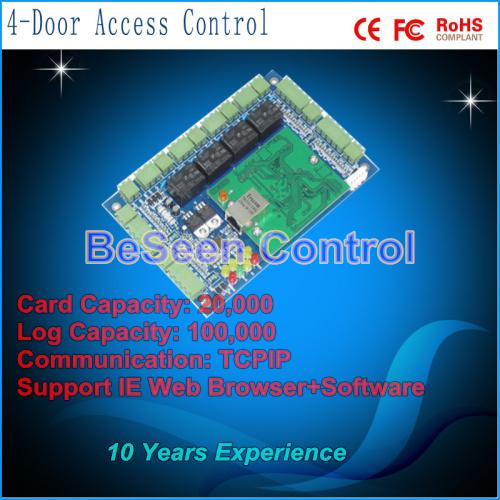

Four Way(4 readers) Four Door Access Control Panel with TCPIP+WEB

Proximity Card Access Control

For Software/manuals/Live Demo .etc. check from Below:

To Download the Software/Manuals/Diagram and Video:

Check from HERE or below link:


Technical Specification

Detail Function Description
Conventional Function:

offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.

Professional function:
for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.
all-in-one-card management system :
nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.
Detail Parameters
TCP/IP 10M/100M adaptive
English Software supportable database:
Access and SQL
Description :
Control 4 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
Power Supply :
12VDC 4-7A
Power Consumption of Circuit Board :
Less than 100mA
Input Format of Reader :
Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers :
Door Controlled :
Door opening time extending setting :
1-600 seconds(adjustable)
Max number of controller :
No limitation
Operation Temperature :
Operation Humidity :
10-90 %RH , No Condensation
Number of users :
20,000 Users
Number of Event Buffers(offline) :
100,000 event buffers
Power interruption protection measure :
High Speed Memory, Records never lose
Max Distance from Reader to Controller :
100m (suggestion distance 80m)
Max Distance between Controllers :

RS232: Communication Distance less than 13m, suggestion distance is 3m or less

RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m

TCP/IP: Depends on net coverage area

RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m
