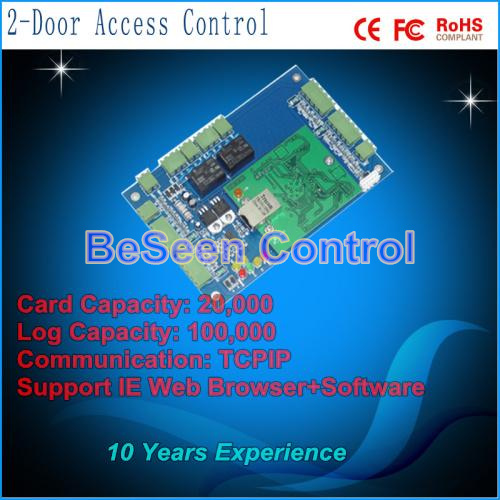

Four Way(4 readers) Two Door Access Control Panel with TCPIP+WEB

Proximity Card Access Control

For Software/manuals/Live Demo .etc. check from Below:

To Download the Software/Manuals/Diagram and Video:

▶Check from HERE or below link:

https://beseencontrol.com/controldoor.html



Technical Specification

Detail Function Description
Conventional Function：

offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.
Professional function：
for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.
all-in-one-card management system ：
nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.
Detail Parameters
Communication：
 TCP/IP 10M/100M adaptive
English Software supportable database：
Access and SQL
Description ：
Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
Power Supply ：
 12VDC 4-7A
Power Consumption of Circuit Board ：
 Less than 100mA
Input Format of Reader ：
 Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers ：
 4pcs
Door Controlled ：
 2
Door opening time extending setting ：
 1-600 seconds(adjustable)
Max number of controller ：
 No limitation
Operation Temperature ：
 -40℃~70℃
Operation Humidity ：
 10-90 %RH ， No Condensation
Number of users ：
 20,000 Users
Number of Event Buffers(offline) ：
 100,000 event buffers
Power interruption protection measure ：
 High Speed Memory, Records never lose
Max Distance from Reader to Controller ：
 100m (suggestion distance 80m)
Max Distance between Controllers ：

RS232: Communication Distance less than 13m, suggestion distance is 3m or less

RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m

TCP/IP: Depends on net coverage area

RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m
Alarm for long time door open, ilegal break in, intimidate ：
 YES
Fire and alarm linkage ：
 If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
Complsive open and close door at long time ：
 YES
Open door in remote distance ：
 YES
Inter block ：
 YES
Anti pass back and tail ：
 YES
Multi-card open door ：
 YES
Open long time at specified time ：
 YES
Electronic map ：
 YES
Urgency locking ：
 YES
First card unlocking ：
 YES
Unlock based on internal and external validation ：
 YES
Keypad (card+passwor, supper password) ：
 YES
Unit Size：
</
