Instruction for you about the Control System

How To Support you

Will support you for ever, check Support method(Email us or Skype) from: HERE

Notes:

• When you turn on device, there is alarm on screen, that¡¯s ANTI-THEFT DESIGN, after you install , it will disappear, please ignore that.
• I'd suggest setting up the device on a table and make sure basic  functions working before installation.
• Some customer don't want to watch video, I suggest can check below diagram from chapter 1.1 and the detail hardware manual from HERE.

Frequently Asked Question(Read Firstly):

1. Lock Force is not enough and need get MAXIMUM Force , reason is: Armature Plate installed too tight;  recommend loosen the Armature Plate screws a little so that the plate can swing a little, check from chapter 2 of this link: https://beseencontrol.com/hpatrol/Maglock-FAQ-Guide.pdf
2. Use what wire for the connection? Normally use cat-6e 24awg cable is ok for this system wire.
3. We have step by step video and diagram for each component wire.
4. We bring value to a lot projects during the past 20 years, also save a lot cost for many customers. If any problem, please don't return directly, that will bring big loss to me. I do support with my heart, Contact me for solution.
5. 99% customer doesn't need to use the software, if you want to try software, please check last part of this page.

1.Video and Wire Diagram Materials Link:

1.1 For how to wire the system, please check below:

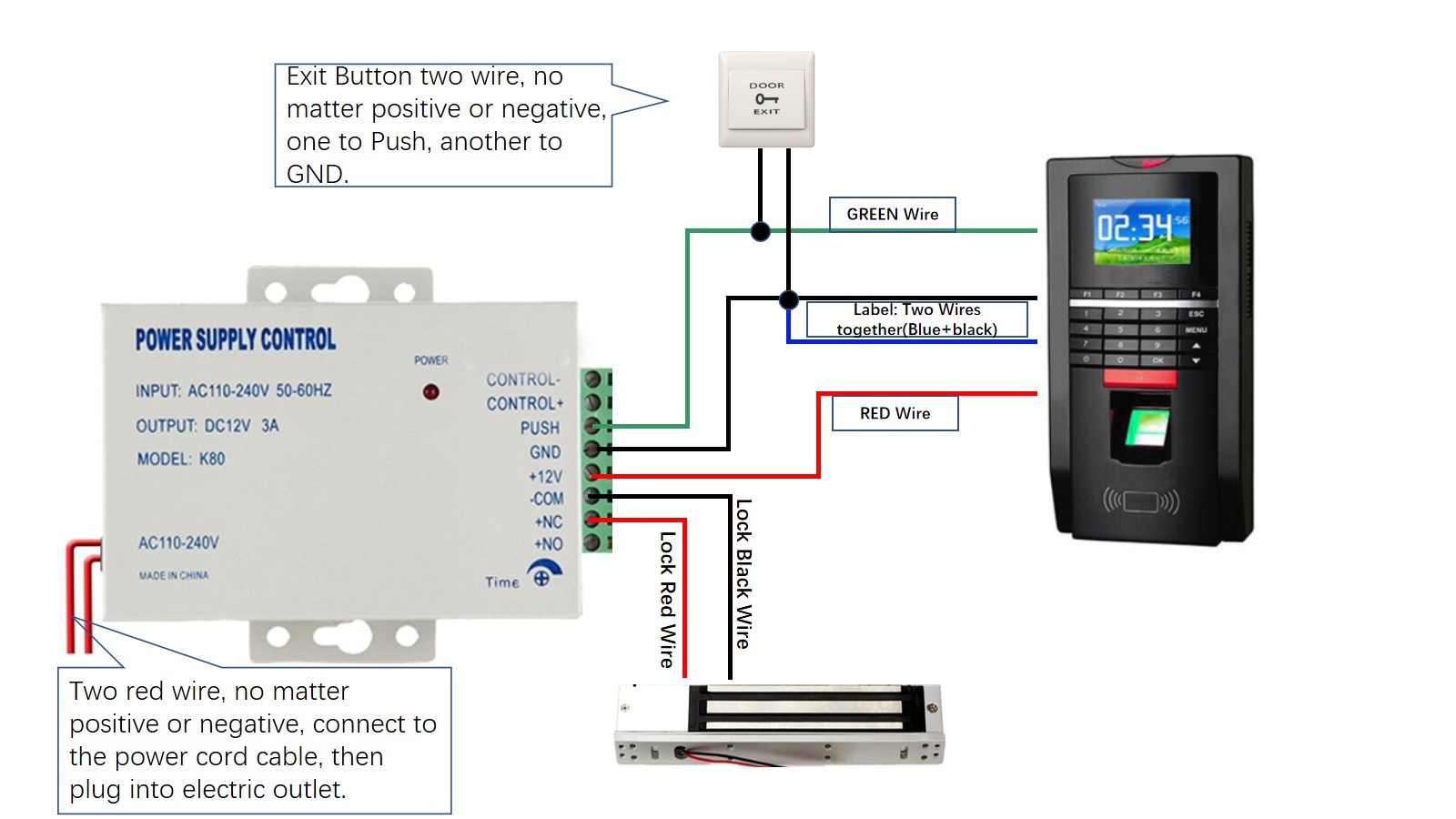

      Wire Diagram, Check from:  HERE.

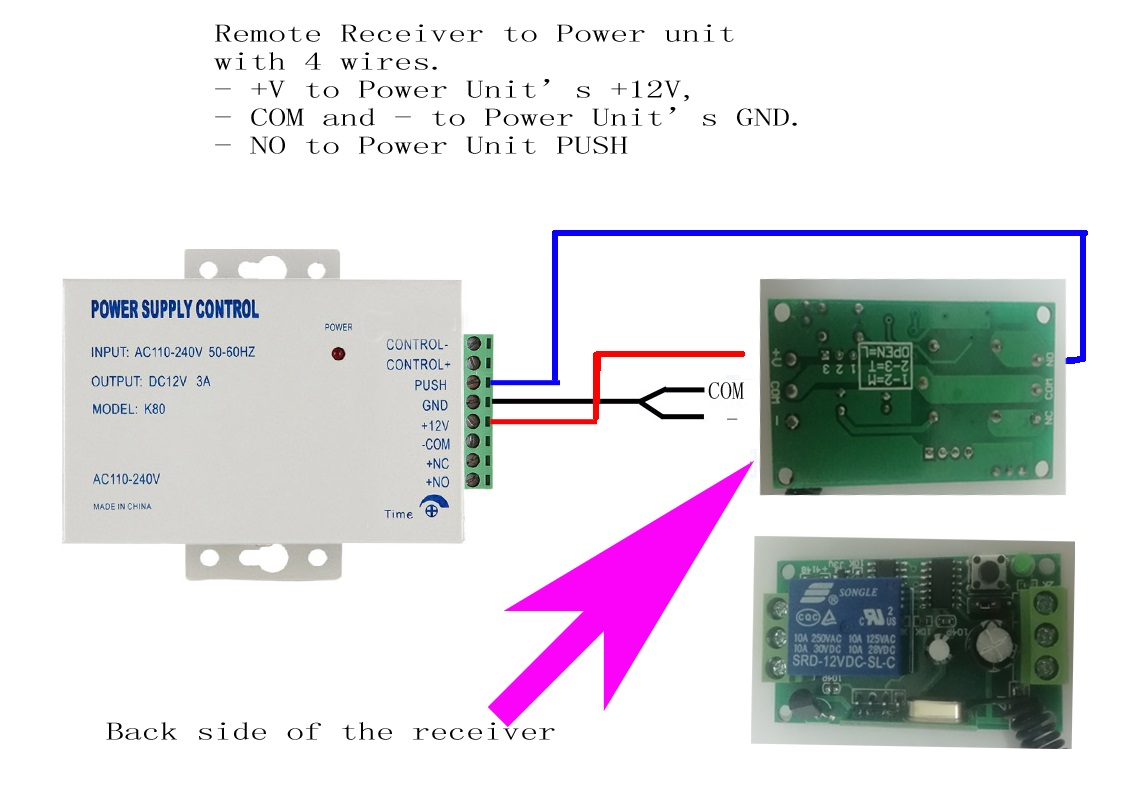

      If have remote button, It's wire Diagram, check from Here.

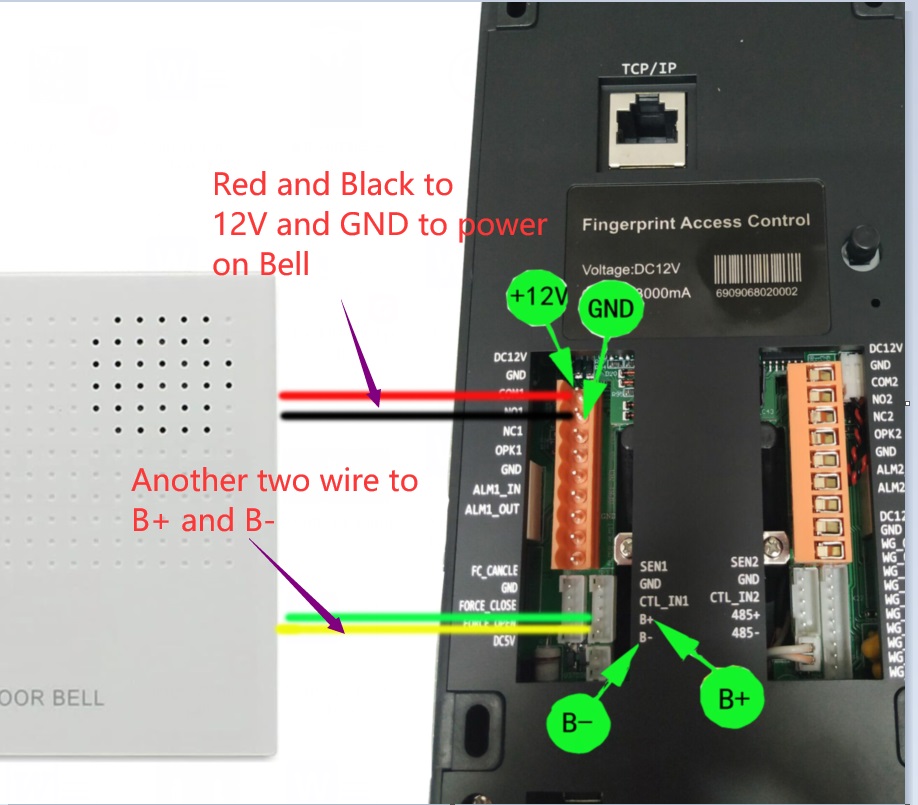

      If have Door Bell, It's wire Diagram, check from Here.

1.2 The Basic enroll/Programm process, please check below video:

https://youtu.be/C1izr6gCmdM

1.3. If use password/pin code for verification, check below video:

https://youtu.be/bqKOdmH1XgU

1.4. Only Manager can enter menu(To protect the device), check below video:

https://youtu.be/kRSmG5ef7ho

2.Lock Install:

Check the Magnetic lock install video and How to Get Maximum Force from Here.

3.How to Fix fingerprint device on wall, check HERE.

I will support you for ever with my nearly 20 years experience.

1. If you prefer email, I will do email support.

2. If you want phone support, I can call you( Please tell me your phone number)

3. Also can do teamviewer support to remotely connect to your computer to guide you, to provide live training and support for you.

Detail hardware manual can download from HERE.(it's long manual, but with many more details, for most customer, I suggest Ignore this, just check above video and diagram directly )

If want to try software(normally, no need using), can check from HERE.
