F7 Fingerprint Access Control & Time attendance

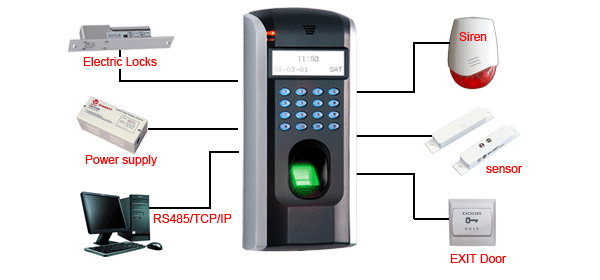

Fingerprint Time Attendance ZDC1533

Technical Specification

Casing material ： Acrylonitrile Butadiene Styrene (ABS)
Dimension(L*W*H)： 180mm *82mm * 55 mm
Type of scanner： Optical
LANGUAGE ： Simplified Chinese, Traditional Chinese, English, and other Languages
STORAGE
User capacity ：
500
Transaction storage：
 30000
ENROLLMENT & VERIFICATION
Verification method：

Fingerprint (1:1 , 1:N) , password
Fingerprint placement (º)：
 Any angle
Identification time (sec) ：
≤1sec
FAR (%)：
 0.0001%
FRR( %)：
 0.1%
COMMUNICATIONS
Communication：
 RS232, RS485,TCP/IP
Baud rate (bps) ：
9600, 19200, 38400, 57600, 115200
Wiegand：
 weigand Out
ACCESS CONTROL
EM lock driving output ：
 DC12V-3A
Access control function：
 50 Time Zone ,5 Grouping, 10 Combination, Holiday Management ,support
many fingerprints access ,support standalone work
alarm output ：
 NO/NC
CARD TECHNOLOGY
RFID：
 N/A,
MIFARE：
 N/A
HID：
 N/A
MULTIMEDIA
Greeting voice ：
Audible Beep
Dispaly：
 LCD with 80 character and figure keypad
OPERATING ENVIRONMENT
Temperature (ºC)：
 -10 ~ 45
Humidity (%)：
 20~ 80
Power input ：
DC 12V-2A
FUNCTION
USB：
 N/A
Webserver：
 N/A
Short message：
 Yes
Schedular bell：
 N/A
log query ：
N/A
T9 input：
 N/A
Wire Doorbell ：
Yes
