DR-K100 Door Release Button

Door Release Button

Technical Specification

Notouch/touch free exit sensor(Diff used Detection)Optical/Infrared Technology
IP-55 Ingress Protection/SUS 304 Stainless steel Plate Uesr friendly(Healthy protection)
Free from contagious diseases spread

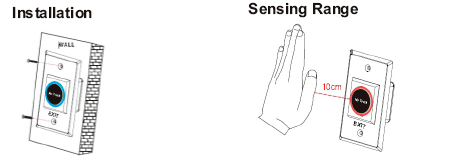

Detection RANGE:0.1~10CM
Application:Gate/Door/Exit/Automation control
High capacity of relay dry contact(3A/AC120V,DC30V)

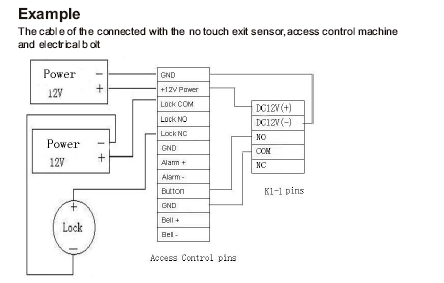

Normally open/Normally close/Common relay output

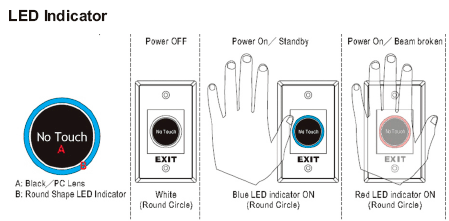

Twin led indicators for sensor standby or approached;
(1)Sensor Standby:BLUE LED ON
(2)Visitors whom approached to the sensor in 10cm;
RED LED ON

Specifications
Contact Rating:3A/AC 120,DC30V
Input Volt:DC12V
Simple and clear for oper ation
Operati on temper ature range -20C~50C
Life:500,000Times
Durable stainless steel plate

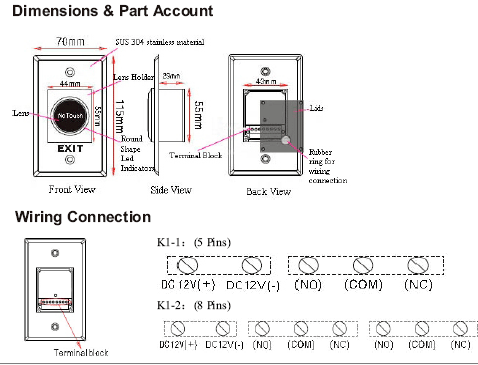

Dimension:115*70*29mm
Weight:85g
