AC-2002RS Access Control System

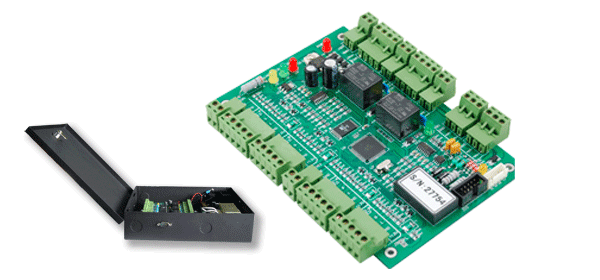

Proximity Card Access Control

Technical Specification

Door controled: 2
Readers can connected: 4pcs
Control of Memory up to 20,000 Users / up to 100,000 Event Buffers
Network Communication via RS232 / RS485

English Software supportable database: Access and SQL

Conventional Function: offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.

Professional function for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.

Access control management software also includes all-in-one-card management system such as nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.

Parameter
AC-2002RS Single Door Control Panel
Communication
RS232 RS485 no need jumper and adaptive 9600 bps
Description
Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
Size of PCB board
160mm *106mm
Size of Case
273mm*228mm*65mm
Power Supply
12VDC 4-7A
Power Consumption of Circuit Board
Less than 100mA
Input Format of Reader
Wiegand 26 (All card reader with compatible protocol, such as Motorola 、 HID 、 EM 、、 Mifare one etc)
Quantity of Readers
2 pairs
Door Controled
2 pairs
Door opening time extending setting
1-600 seconds(adjustable)
Max q ' ty of controller
N*256PCS
Operation Temperature
- 40 C~70 C
Operation Humidity
10-90 ％ RH ， No Condensation
Q ' ty of users
20,000 Users
Q ' ty of Event Buffers(offline)
100,000 event buffers
Power interruption protection measure
High Speed Memory, Records never lose
Max Distance from Reader to Controller
100m (suggestion distance 80m)
Max Distance between Controllers
RS232: Communication Distance less than 13m, suggestion distance is 3m or less
RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m
TCP/IP: Depends on net coverage area
Collocations
PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
Alarm for long time door open, ilegal break in, intimidate
Yes
Fire and alarm linkage
If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
Complsive open and close door at long time
Yes
Open door in remote distance
Yes
Inter block
Yes
Anti pass back and tail
Yes
Multi-card open door
Yes
Open long time at specified time
Yes
Electronic map
Yes
Urgency locking
Yes
First card unlocking
Yes
Unlock based on internal and external validation
Yes
Keypad (card+passwor, supper password)
Yes
