I'd suggest setting up the device on a table and make sure basic functions before installation.

1st stage:

I suggest you focus on the access control part firstly, ignore the video intercom at 1st stage.

We have video guide for the access control part, please check from:

Part1: Software and phone app

1. For the software/diagram and video, please check from below:

https://beseencontrol.com/controldoor.html

- use phone app to open lock from:

https://beseencontrol.com/phoneapp.html

2nd stage:

For Intercom and access system control the same lock, when visitor come, the inside people open lock by intercom. And for legal and enrolled users, use access system by swipe card to open the same entrance lock.

if so, This need to use the small power supply unit( Model: K80

Then, for the video intercom wire, check below video:

please check below video:

https://www.youtube.com/watch?v=nxTXr6rT-M4&feature=youtu.be

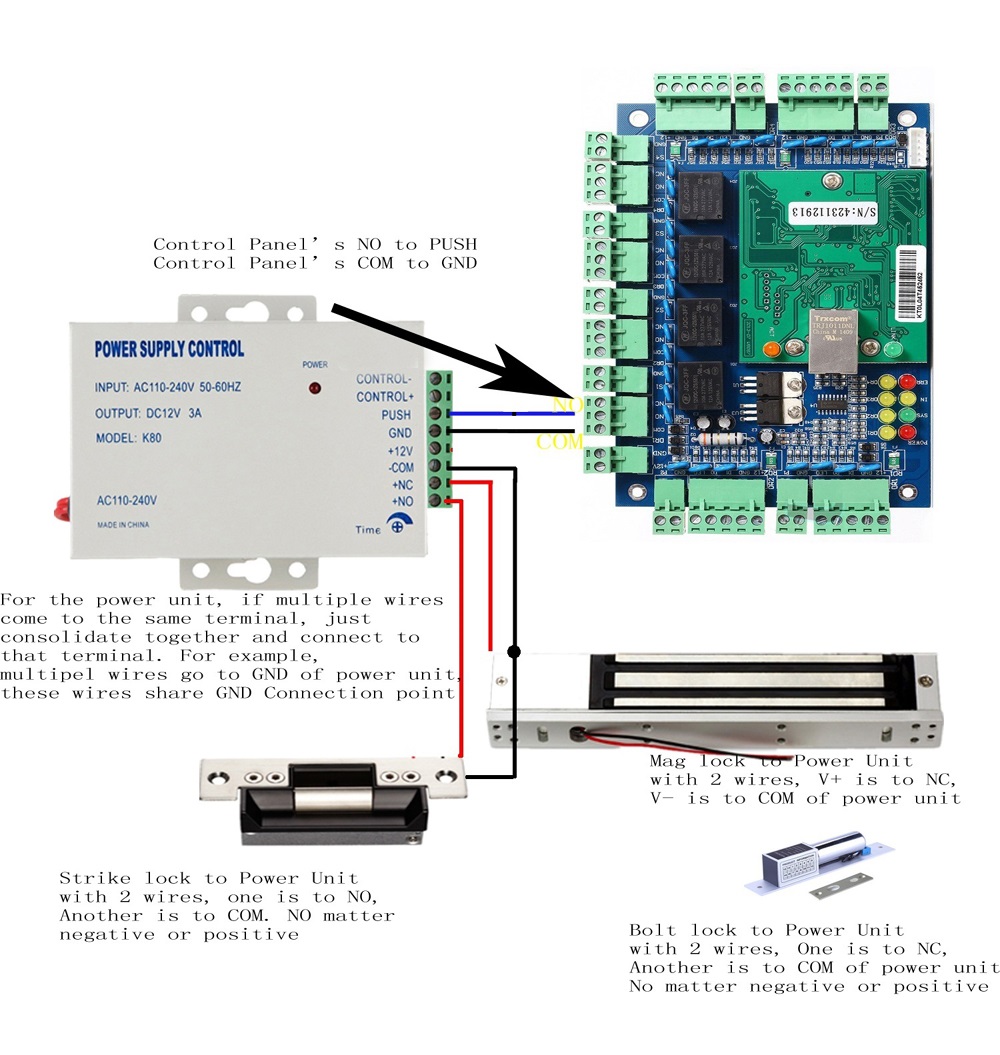

for our control panel to the power board, wire as follow this below diagram. then our system and the phone bell can open same lock.
