This Model Support Thermal printer to print ticket after verification passed, check below video demo:
Download software+Full Software Manual from: Here (Support English/Spanish/Portuguese/Arabic/Russian .etc. )
Download hardware/Software manual : Link
|
| | | | |

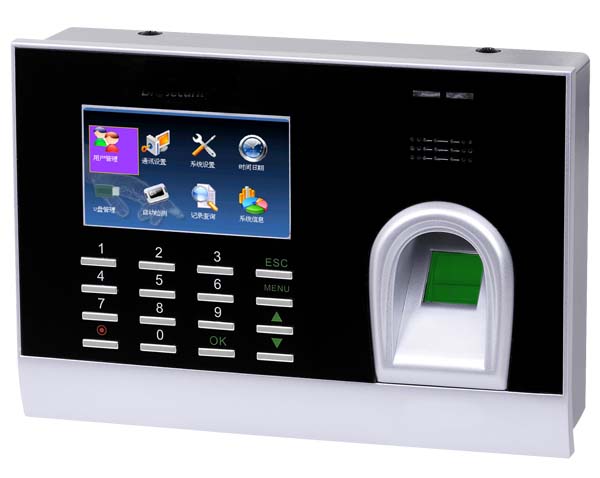

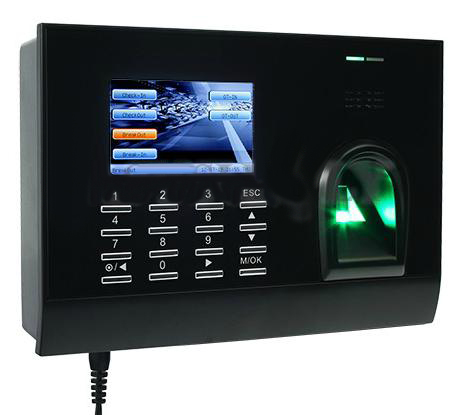

| Description | BS202 Fingerprint Attendance Time Clock For tracking employee working time
1. Standalone work, TFT Screen, Very Beautiful
2. Professional Time Attendance Check and Monitoring
3. Communication:TCP/IP, USB
4.Fingerprint:2,200, Logs Capacity:80,000
5. Free and powerful software and SDK
Introduction:
This device uses biometric fingerprint identification to track the time of each employee presence, automatically calculates summary time for each employee and generates printable reports.
It also come with Free software, the software allows to create administrators, check in/out details report and work hour summary, Overtime settings, departments and work codes/job types set up. Software also provides reports in Microsoft XLS export feature.
Feature:
- With Fingerprint reader or PIN as Verification
- 1 touch a-second user recognition
- Stores 2200 finger templates and 80,000 attendance records
- Built-in Serial and Ethernet ports
- TCP/IP supports download of the entry/exit data
- Support finger 360 degree identification
- CMOS Automatic exposure and intelligent compensation,enhanced image quality
- Audio-Visual indications for acceptance and rejection of valid/invalid fingers
- Standalone, it can store 80,000 recordsin its Internal Memory
- SDK available for OEM customers/software developers. Free Software
Specification:
Hardware |
Platform: BS510 |
Image Sensor |
Special Stereo Dual Sensor |
Display |
3 Inch Touch Screen |
Finger Capacity |
2200(1:N) |
Logs Capacity |
80,000 |
Communication |
TCP/IP, USB Host |
Power Supply |
5V/1.5A |
Verification Speed |
less than 1S |
Operating temperature |
0-45 |
Operating Humidity |
20%-80% |
Dimensions(LxHxD) |
280x250x80 mm |

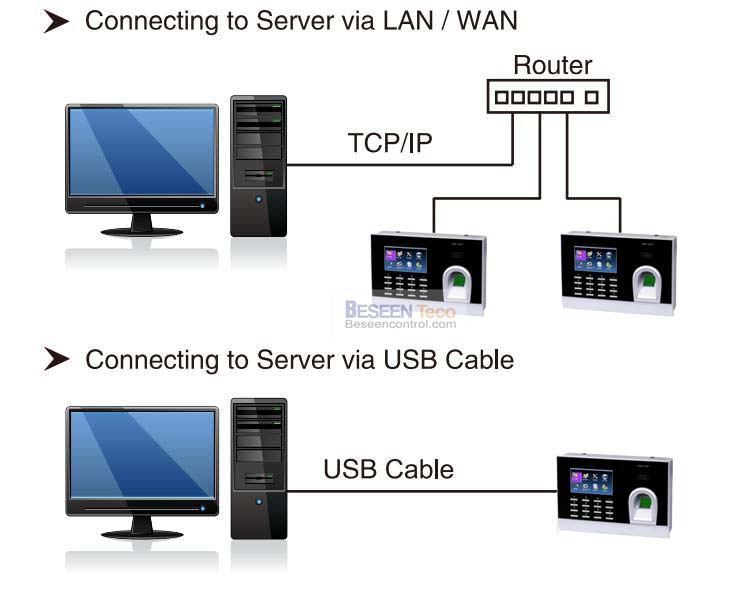

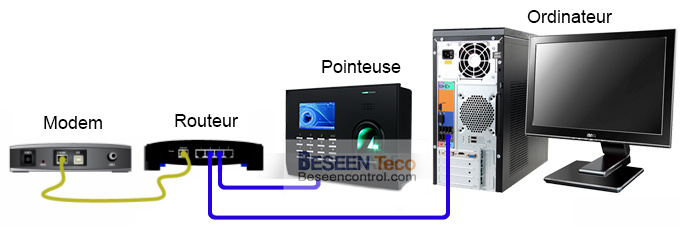

Connection Diagram:
|
|
|
