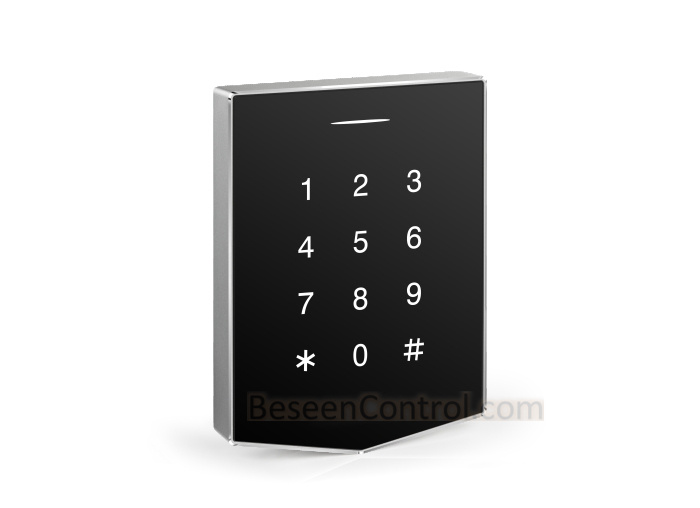

S200 adopts aluminium alloy structure, capacitive sensing and luminescent touch keypad, It can identify 125 KHZ EM and HID cards or 13.56 MHz IC and CPU (ISO14443A) cards (S200-IC). With 3 kinds of combination of card and PIN to unlock the door, can directly drive electric lock, support external exit button, door contact. Up to 1000 users capacity, each user owns one card and one 4-6 digits PIN .The Master can set 8pcs Master cards to achieve factory default, add users, delete users, authorization , prohibition ,multi-card access, anti-duress, normal open etc functions.
Operating voltage range£ºDC12¡«24V
Idle input current£º¡Ü38mA
Operating temperature range£º-40¡«60¡ã C
Operating humidity£º0¡«95%£¨non-condensing£©
Lock Output Load: 1A or 50mS 4A impulse
Alarm Output Load: 1A
________________________________________________
Card Type: EM and HID/125KHz
Reading Distance£º8cm
Quantity of Master Card£º8pcs
User Capacity: 1000£¨include PIN user£©
PIN Length Of User: 4-6 digits
PIN Length Of Master£º6-8 digits
Door open time setting£º50mS£¬1-98 Second, Normal Open
Alarm Time: 60 Second
Door unlocked time limit£º10 Second
Door unlocked alert frequency£º10 times£¨1time/second£©
Maximum card of multi-cards access: 10pcs
Anti- cracking times£º3 times
________________________________________________
Body material: surface oxidation of aluminum alloy
Material of back plane and bracket: galvanized iron
Material of Front Panel£º Acrylic
Keypad type£ºCapacitive sensing touch keypad
Keypad Color£ºBacklit keypad, reflected white light
________________________________________________
Access mode£ºSingle card, multi cards, card + PIN, card or PIN
Electric lock drive mode£ºNMOS output
Tools of resetting factory default: exit button or initializing Master card
External input device: exit button, door contact.
Output drive device: electric lock, Alarm
Electric lock type£ºFail Safe, Fail Secure
Electric lock option: by program
Alarm type: anti tamper, anti duress, door contact, anti cracking.
S200-EH
Card type:125KHZ EM & HID
The largest distance of reading:8cm
Operating temperature:-40¡«60¡ã C
S200-IC
Card type:13.56MHZ IC & CPU
The largest distance of reading:4cm
Operating temperature:-20¡«60¡ã C
