New IP68 Waterproof RFID Card Access Controller With Wiegand 26 Output
Top Quality, 100%New!!!
Download User Manual click Here:
Introduction:

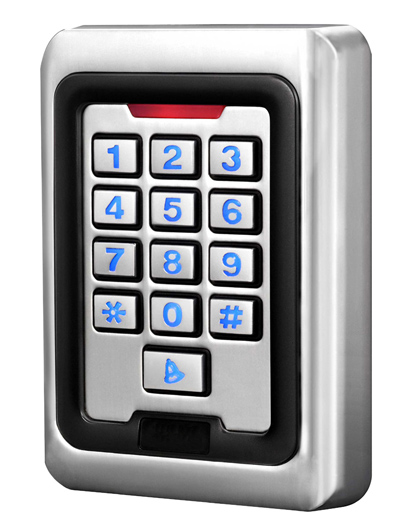

This product is a Metal case RFID card waterproof Access Controller, It is one of the most advanced stand alone access controller. It uses unique metal exterior design, Dexterity keyboard panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety and reliability is extremely high, can provide a powerful security for 2,000 users. It has strong functions, such as low power consumption, Luminous keyboard, independent passwords, wiegand 26 output, the output short circuit protection, door magnetic alarm, prevent demolition alarm, exit button, the doorbell interface, level of security Settings, etc. widely used in home, office, residential area and other public places.
Main Features:
- Low power consumption: less than 30mA standby current
- Luminous keyboard: the night can also operate keyboard
- User capacity: support 2,000 users
- Independent password: can use password which irrelevant with the card to open the door
- User modification password: Users can revise the door password
- Search speed: charge to open the door time less than 0.1 S.
- Output short circuit protection: electric lock or alarm output circuit within 100 μS when shut down automatically output
- Wiegand output: With Wiegand output interface，Wg26 card number or Wg4 buttons output(Can not connect more a External Reader).
- Usable keyboard delete card number: After card is lost, usable keyboard delete card， Thoroughly eliminate safety lapses
- The demolition alarm: Illegal dismantling machine, built-in alarm sound buzzer
- The bell button and interface: key and circuit segregation, external any the doorbell.
Specifications:
- Work Voltage: DC 12V
- Static Current：≤30mA
- Reading Range：2-5cm
- Capacity: 2000 users
- Ambient Temperature：-25℃-60℃
- Ambient Humidity：10%-90%
- Electricity lock output：≤3A
- Alarm output：≤20A
- Open time：0-99 seconds (adjustable)
- Size：120x80x25(mm)
Package include:
1x Metal waterproof access controller
1x English user manual
